Before you begin: Hydraulic equipment can contain lethal stored energy. Only trained and authorized personnel should perform hydraulic work. Isolate energy, support loads, verify the pressure state, use pressure-rated instruments and follow site-specific lockout/tagout procedures. The diagrams are simplified training illustrations; use the actual machine schematic and manufacturer instructions.
Hydraulic schematics describe functions, not physical piping routes. The fastest way to understand one is to trace power flow from reservoir to pump, pressure-control elements, directional elements, actuators, and back to tank while noting the normal state of each valve.
In practice, the fastest diagnosis comes from deciding what the component is supposed to control and then measuring the variable on both sides of that component. Pressure tells you about load and restriction; flow tells you about speed; temperature tells you where power is being lost; leakage tells you whether clearances or seals are allowing oil to bypass the intended path.

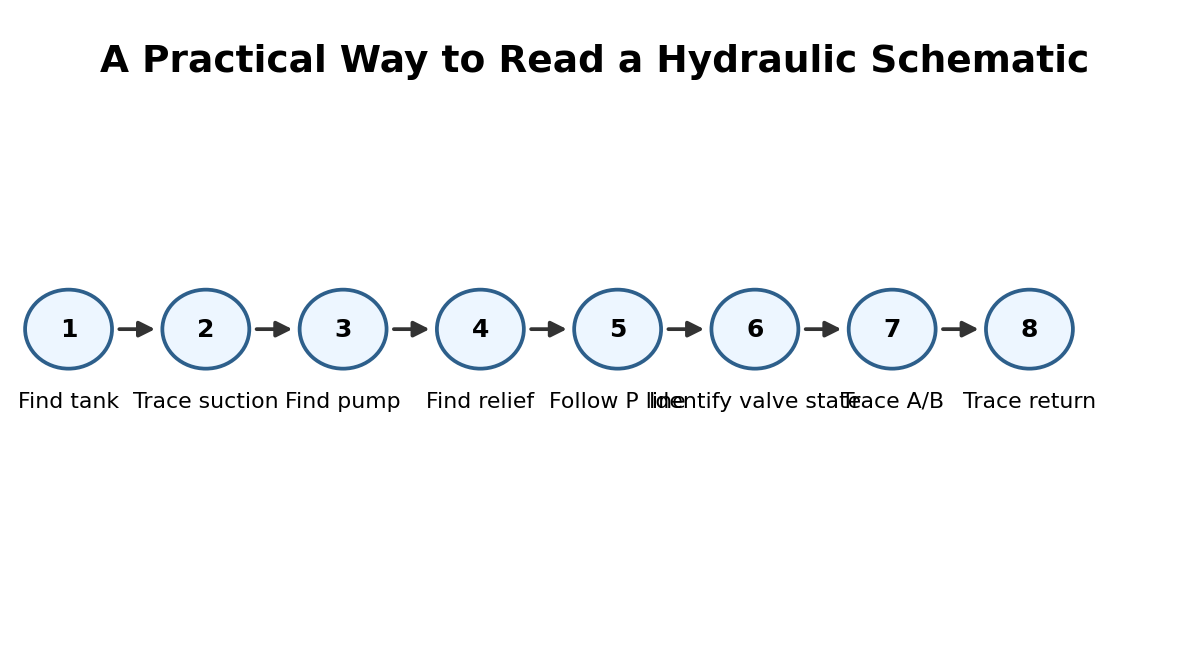

Figure 4. Simplified diagnostic view for 4. Reading Hydraulic Schematics Without Guessing.
What the technician may observe
- technician cannot tell which valve controls a motion
- multiple valves share common pressure and return galleries
- center position changes machine behavior at idle
- pilot lines cause a valve to change state indirectly
- schematic looks different from physical manifold
Diagnostic sequence
- Start at the tank and find the pump inlet. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Trace the pump outlet to the main relief valve before following branches. Record the result before changing the next variable so the test actually narrows the fault.
- Identify normally open, normally closed, spring-offset and detented positions. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Trace P, T, A and B paths for the commanded function. Record the result before changing the next variable so the test actually narrows the fault.
- Follow dashed pilot and drain lines separately from main flow lines. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Mark test points and expected pressure states directly on a working copy. Record the result before changing the next variable so the test actually narrows the fault.
How to interpret the measurements
Begin by asking whether the symptom affects the whole machine or only this function. If other functions sharing the same supply remain normal, a common pump or reservoir fault becomes less likely and the local valve, actuator, plumbing and mechanical load deserve more attention.
Next, compare pressure upstream and downstream while oil is actually flowing. A large pressure difference across a component means that component or passage is consuming hydraulic energy. If flow is low everywhere, investigate pump delivery, inlet conditions, speed and major internal leakage before blaming a local valve.
Finally, repeat the test at the condition that creates the complaint: hot oil, full load, a particular direction, low speed or rapid cycling. Hydraulic clearances, viscosity, pilot pressures and valve forces change with operating condition, so a static test may look normal while the production fault remains.
Corrective actions after the cause is proven
- Create simplified function sketches for complex manifolds.
- Label hoses and test ports during planned maintenance.
- Keep current drawings with documented modifications.
- Never infer a valve function from coil location alone.
Common mistakes
- Adjusting the relief or compensator before recording the original setting and proving that the setting is wrong.
- Replacing a component because it is hot, even though the heat may be arriving from an upstream restriction or continuous bypass flow.
- Calling a problem “low pressure” when the actual complaint is low flow or excessive mechanical load.
- Testing only with cold oil when the production fault appears after the system reaches operating temperature.
Field rule: For 4. reading hydraulic schematics without guessing, do not replace a component until one measurement or isolation test shows how it fails to perform its intended function.
Symptom-to-next-test table
| Observed condition | First useful test |
|---|---|
| Technician cannot tell which valve controls a motion | Measure the controlled variable before and after the suspected component. |
| Multiple valves share common pressure and return galleries | Measure pressure at pump and actuator under the actual load. |
| Center position changes machine behavior at idle | Measure the controlled variable before and after the suspected component. |
| Pilot lines cause a valve to change state indirectly | Measure the controlled variable before and after the suspected component. |
Field practice
Before leaving the machine, write down three numbers that would let another technician judge whether the repair truly restored normal operation. Good choices are usually operating temperature, a pressure at a defined machine state, and either flow or cycle time. This creates the baseline that makes the next fault faster to diagnose.
