By Dovydas Kersys · Chapter 21 of 40 in Hydraulic Troubleshooting.
Before you begin: Hydraulic equipment can contain lethal stored energy. Only trained and authorized personnel should perform hydraulic work. Isolate energy, support loads, verify the pressure state, use pressure-rated instruments and follow site-specific lockout/tagout procedures. The diagrams are simplified training illustrations; use the actual machine schematic and manufacturer instructions.
A relief valve limits maximum pressure by opening a path to tank. It does not create pressure. If the system cannot reach the relief setting, the root cause may be missing flow, another open path, or excessive leakage.
In practice, the fastest diagnosis comes from deciding what the component is supposed to control and then measuring the variable on both sides of that component. Pressure tells you about load and restriction; flow tells you about speed; temperature tells you where power is being lost; leakage tells you whether clearances or seals are allowing oil to bypass the intended path.

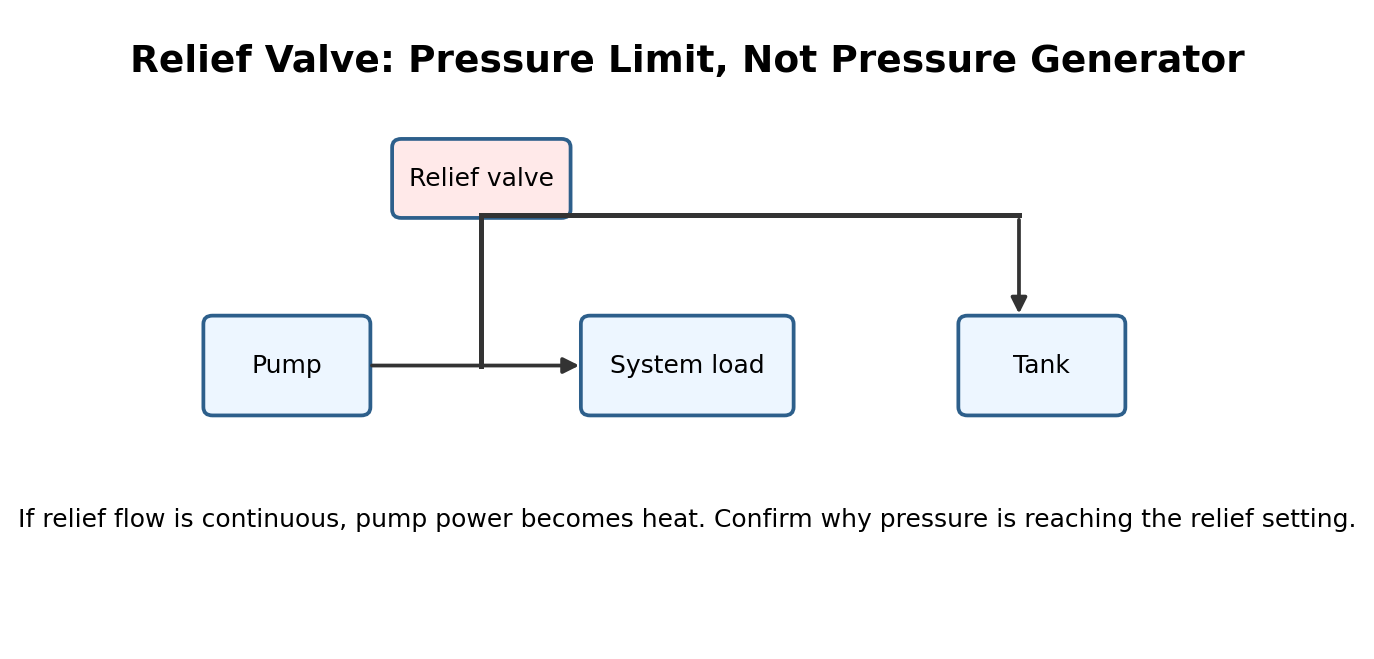

Figure 21. Simplified diagnostic view for 21. Relief Valves: Setting, Instability and Leakage.
What the technician may observe
- system pressure too low
- pressure overshoots or chatters
- relief valve runs hot
- pressure changes after warm-up
- adjuster reaches end of travel
Diagnostic sequence
- Confirm that the load demands enough pressure to reach the relief setting. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Measure pump flow and identify any other unloading path. Record the result before changing the next variable so the test actually narrows the fault.
- Check pilot passages and orifices for contamination. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Inspect drain/backpressure conditions on pilot-operated designs. Record the result before changing the next variable so the test actually narrows the fault.
- Verify spring, poppet or spool condition after isolation. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Adjust only with a calibrated gauge and correct procedure. Record the result before changing the next variable so the test actually narrows the fault.
How to interpret the measurements
Begin by asking whether the symptom affects the whole machine or only this function. If other functions sharing the same supply remain normal, a common pump or reservoir fault becomes less likely and the local valve, actuator, plumbing and mechanical load deserve more attention.
Next, compare pressure upstream and downstream while oil is actually flowing. A large pressure difference across a component means that component or passage is consuming hydraulic energy. If flow is low everywhere, investigate pump delivery, inlet conditions, speed and major internal leakage before blaming a local valve.
Finally, repeat the test at the condition that creates the complaint: hot oil, full load, a particular direction, low speed or rapid cycling. Hydraulic clearances, viscosity, pilot pressures and valve forces change with operating condition, so a static test may look normal while the production fault remains.
Corrective actions after the cause is proven
- Do not compensate for a worn pump by raising relief pressure.
- Correct return backpressure that alters pilot operation.
- Lock and document the final setting.
- Replace contaminated fluid and clean pilot passages when required.
Common mistakes
- Adjusting the relief or compensator before recording the original setting and proving that the setting is wrong.
- Replacing a component because it is hot, even though the heat may be arriving from an upstream restriction or continuous bypass flow.
- Calling a problem “low pressure” when the actual complaint is low flow or excessive mechanical load.
- Testing only with cold oil when the production fault appears after the system reaches operating temperature.
Field rule: For 21. relief valves: setting, instability and leakage, do not replace a component until one measurement or isolation test shows how it fails to perform its intended function.
Symptom-to-next-test table
| Observed condition | First useful test |
|---|---|
| System pressure too low | Measure pressure at pump and actuator under the actual load. |
| Pressure overshoots or chatters | Measure pressure at pump and actuator under the actual load. |
| Relief valve runs hot | Measure temperature and pressure drop at the suspected heat source. |
| Pressure changes after warm-up | Measure pressure at pump and actuator under the actual load. |
Field practice
Before leaving the machine, write down three numbers that would let another technician judge whether the repair truly restored normal operation. Good choices are usually operating temperature, a pressure at a defined machine state, and either flow or cycle time. This creates the baseline that makes the next fault faster to diagnose.
