By Dovydas Kersys · Chapter 16 of 40 in Hydraulic Troubleshooting.
Before you begin: Hydraulic equipment can contain lethal stored energy. Only trained and authorized personnel should perform hydraulic work. Isolate energy, support loads, verify the pressure state, use pressure-rated instruments and follow site-specific lockout/tagout procedures. The diagrams are simplified training illustrations; use the actual machine schematic and manufacturer instructions.
Vane pumps often provide smooth, quiet flow, but contamination, inlet conditions and wear of vanes, cam ring and side plates can reduce performance. Some designs also rely on correct rotation and cartridge assembly.
In practice, the fastest diagnosis comes from deciding what the component is supposed to control and then measuring the variable on both sides of that component. Pressure tells you about load and restriction; flow tells you about speed; temperature tells you where power is being lost; leakage tells you whether clearances or seals are allowing oil to bypass the intended path.

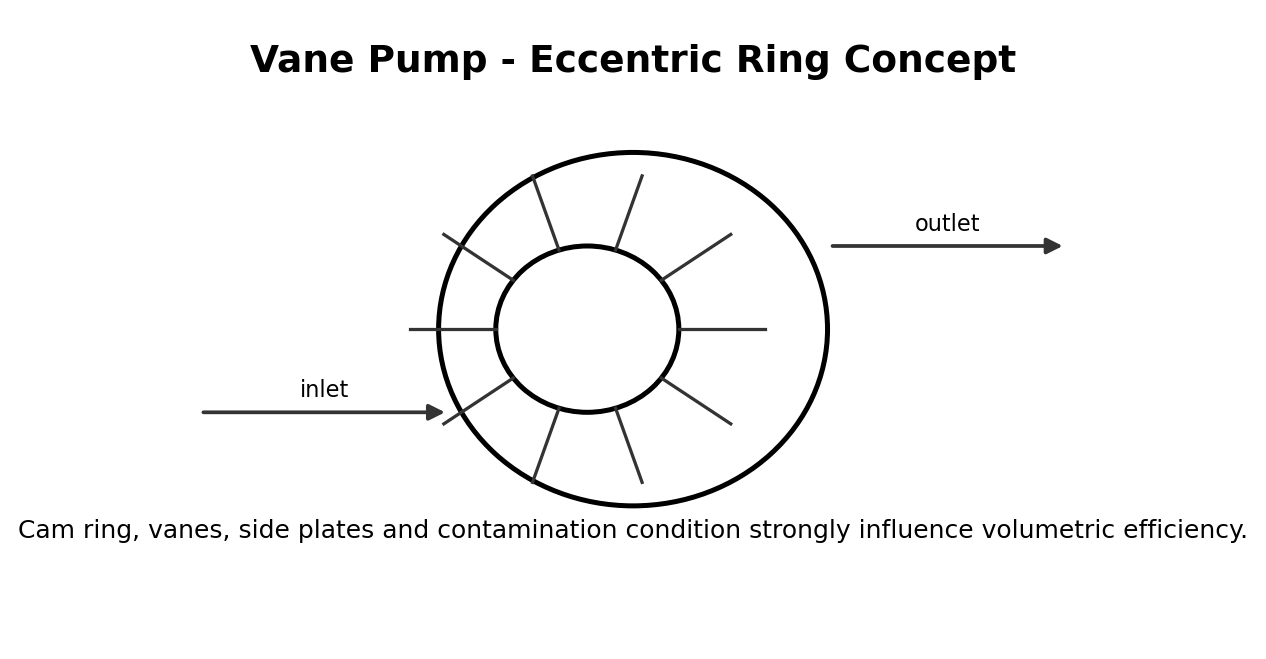

Figure 16. Simplified diagnostic view for 16. Vane Pump Faults.
What the technician may observe
- pump is noisy despite correct oil level
- flow is uneven or low
- cartridge fails repeatedly
- pump works cold but weak hot
- vane pump will not prime after service
Diagnostic sequence
- Verify rotation direction and cartridge orientation. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Check suction vacuum and inlet line leaks. Record the result before changing the next variable so the test actually narrows the fault.
- Measure hot flow versus pressure. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Inspect cam ring and vane wear patterns for evidence of contamination or poor lubrication. Record the result before changing the next variable so the test actually narrows the fault.
- Confirm correct pressure rating and cartridge series. Compare the reading with a known-good baseline or the machine specification rather than relying on a generic value.
- Check whether the shaft is side-loaded by belt or coupling misalignment. Record the result before changing the next variable so the test actually narrows the fault.
How to interpret the measurements
Begin by asking whether the symptom affects the whole machine or only this function. If other functions sharing the same supply remain normal, a common pump or reservoir fault becomes less likely and the local valve, actuator, plumbing and mechanical load deserve more attention.
Next, compare pressure upstream and downstream while oil is actually flowing. A large pressure difference across a component means that component or passage is consuming hydraulic energy. If flow is low everywhere, investigate pump delivery, inlet conditions, speed and major internal leakage before blaming a local valve.
Finally, repeat the test at the condition that creates the complaint: hot oil, full load, a particular direction, low speed or rapid cycling. Hydraulic clearances, viscosity, pilot pressures and valve forces change with operating condition, so a static test may look normal while the production fault remains.
Corrective actions after the cause is proven
- Correct installation and rotation errors.
- Replace damaged cartridge components as an approved assembly.
- Improve contamination control.
- Verify inlet oil supply before restart.
Common mistakes
- Adjusting the relief or compensator before recording the original setting and proving that the setting is wrong.
- Replacing a component because it is hot, even though the heat may be arriving from an upstream restriction or continuous bypass flow.
- Calling a problem “low pressure” when the actual complaint is low flow or excessive mechanical load.
- Testing only with cold oil when the production fault appears after the system reaches operating temperature.
Field rule: For 16. vane pump faults, do not replace a component until one measurement or isolation test shows how it fails to perform its intended function.
Symptom-to-next-test table
| Observed condition | First useful test |
|---|---|
| Pump is noisy despite correct oil level | Measure the controlled variable before and after the suspected component. |
| Flow is uneven or low | Measure the controlled variable before and after the suspected component. |
| Cartridge fails repeatedly | Measure the controlled variable before and after the suspected component. |
| Pump works cold but weak hot | Measure temperature and pressure drop at the suspected heat source. |
Field practice
Before leaving the machine, write down three numbers that would let another technician judge whether the repair truly restored normal operation. Good choices are usually operating temperature, a pressure at a defined machine state, and either flow or cycle time. This creates the baseline that makes the next fault faster to diagnose.
