Current loops are robust, but they are not immune to electrical noise, and the practices of grounding and shielding exist to protect the signal from interference. Understanding these practices — and the problems they prevent — is important both for correct installation and for diagnosing the noise-related faults that produce erratic readings.
Why shielding matters
The wires of a loop, running through a plant full of motors, drives, and power cables, are exposed to electromagnetic interference that can induce unwanted noise on the signal. A cable shield — a conductive layer around the signal wires — protects against this by intercepting the interference and draining it to ground, keeping it off the signal conductors. The shield is why instrument cables are typically shielded, and why routing instrument cables away from power cables and drives is good practice. For a current loop, moderate noise is often tolerable because the current signal is fairly robust, but significant interference can still corrupt the reading, especially over long runs near heavy electrical equipment. Understanding that the shield’s job is to intercept and drain interference explains both why it is there and why a compromised shield — broken, or improperly grounded — can allow noise onto the signal, producing the erratic readings that are a recognizable class of loop fault.

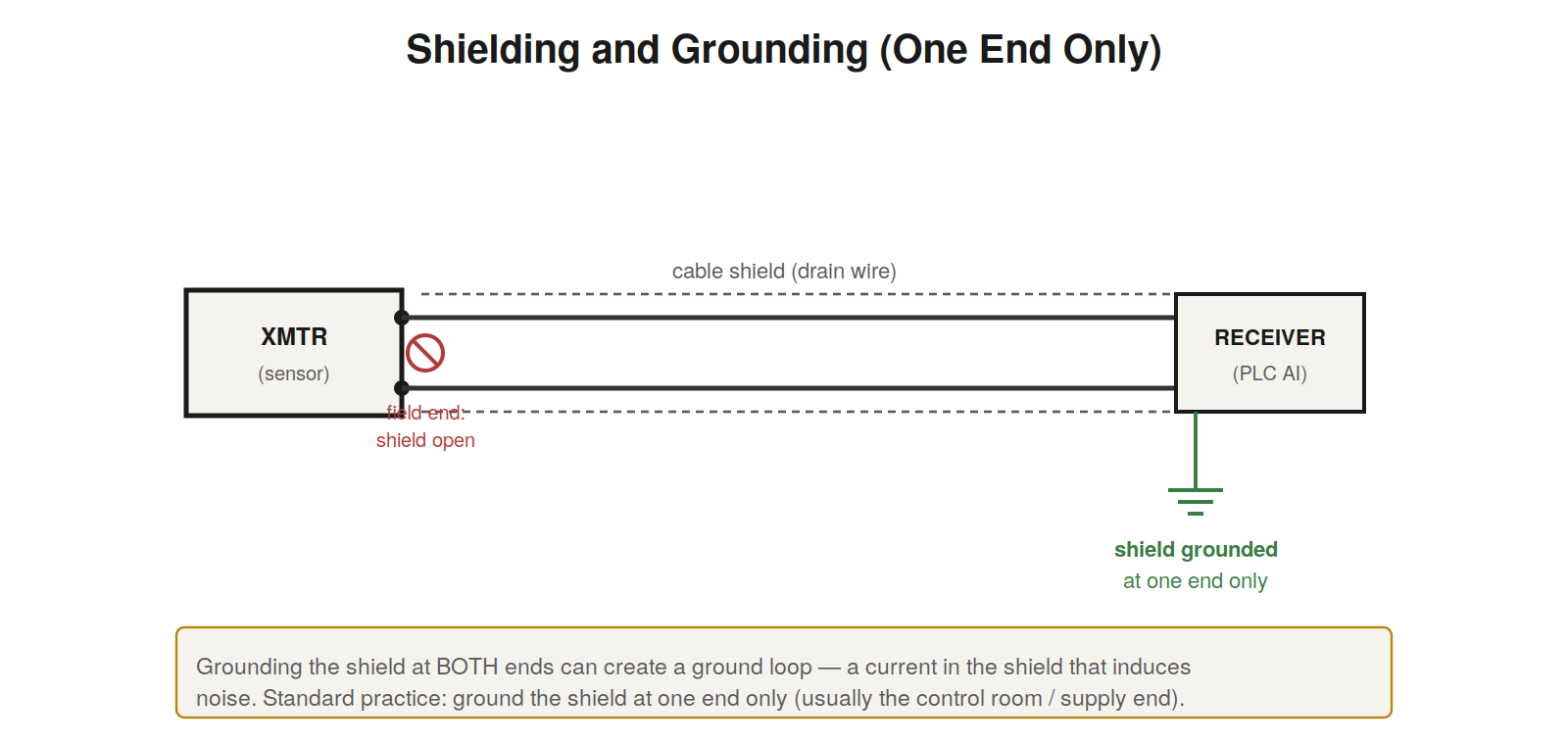

Grounding the shield at one end only
A crucial practice is grounding the cable shield at one end only, usually the control-room or supply end, rather than at both ends. The reason is that grounding the shield at both ends can create a ground loop: if the two ground points are at slightly different potentials (which is common in a large plant), a current flows through the shield between them, and this current can itself induce noise on the signal — the very thing the shield is meant to prevent. Grounding at one end only lets the shield drain interference without providing a path for a ground-loop current, because with only one ground connection there is no loop for such a current to flow through. Reading and following this one-end grounding practice is important, and a shield mistakenly grounded at both ends is a real cause of noise problems. When diagnosing an erratic loop, checking that the shield is grounded correctly — at one end only — is a worthwhile step, because improper shield grounding is a common source of the noise that makes a reading fluctuate.
Diagnosing noise
Noise on a loop shows up as an erratic, fluctuating reading rather than a steady one, and diagnosing it means looking at the causes of interference and the integrity of the protections against it. A noisy reading points to possibilities such as a compromised or improperly grounded shield, a loop cable routed too close to power cables or drives, a ground loop from double-end grounding, or a loose connection introducing intermittent resistance. Diagnosing noise involves checking these: the shield’s integrity and grounding, the cable routing, and the connections. Because noise is intermittent and reading-dependent, it can be harder to pin down than a hard fault like a broken wire, but understanding its sources — interference and the state of the shielding and grounding meant to prevent it — gives you a list of things to check. Distinguishing a noisy reading (fluctuating around roughly the right value) from other faults (a steady wrong value, or a dead loop) is itself useful, because the erratic signature points specifically toward noise and its causes rather than toward the transmitter or a wiring break.
The ground loop explained
The ground loop deserves a closer look, because it is a common and counterintuitive cause of noise. A ground loop arises when a conductor — such as a cable shield — is connected to ground at two points that are at slightly different electrical potentials. In a large plant, different ground points are rarely at exactly the same potential; small differences exist due to currents flowing in the grounding system. When the shield is grounded at both ends, these two ground points, at slightly different potentials, drive a current through the shield between them, and that current can couple noise onto the signal conductors inside — precisely the interference the shield was meant to prevent. The counterintuitive part is that grounding the shield more (at both ends) makes things worse, not better. The solution, grounding at one end only, breaks the loop: with a single ground connection there is no path for a circulating current, so the shield can drain interference without a ground-loop current forming. Understanding this mechanism explains why one-end grounding is the rule and why double-end grounding is a real noise fault to look for.
Scenario: intermittent noise from a nearby drive
A scenario captures a classic noise problem. A loop’s reading was mostly steady but occasionally jumped erratically, and the disturbances seemed to correlate with something in the plant. Investigation of the erratic signature led to the noise factors: the loop cable ran near a variable-speed drive that switched on and off, and when it ran, it radiated interference that the loop cable picked up, causing the erratic reading. Compounding this, the cable shield was found grounded at both ends, creating a ground loop that made the pickup worse. The correction addressed both: grounding the shield at one end only removed the ground loop, and improving the cable’s separation from the drive reduced the pickup. Together these quieted the reading to a steady value. This scenario shows the erratic signature directing the investigation to noise, and the specific causes — proximity to a switching drive and improper double-end shield grounding — being found by checking the noise-related factors. It is a very common real-world situation, and it illustrates how understanding shielding, grounding, and interference turns a puzzling intermittent noise problem into an identifiable and fixable cause.
Distinguishing noise from other faults
A practical skill is distinguishing a noise problem from other faults by the character of the reading, since noise has a recognizable signature. Noise produces an erratic, fluctuating reading — the value jumps around, often rapidly, rather than sitting steady or being cleanly wrong. This is different from a dead loop (steady zero), a scaling error (steady but wrong value), or a range-dependent failure (correct then capping). The fluctuation is the tell: a reading that will not settle, that varies when the process is steady, points to noise or an intermittent connection rather than a fixed fault. Recognizing this character directs the investigation toward the noise factors — shielding, grounding, cable routing, connections — rather than toward the transmitter or a clean wiring break. Distinguishing noise by its erratic character is the first step in diagnosing it, because it classifies the fault as a noise or intermittency problem and directs you to the relevant causes. A steady wrong reading and an erratic reading call for different investigations, and reading the character of the fluctuation tells you which you are facing, focusing the diagnosis appropriately from the start.
Prevention through good installation
Noise problems are far better prevented than cured, and understanding the prevention — good installation practice — completes the picture of noise. Proper shielding, grounded at one end only, keeps interference off the signal. Routing instrument cables away from power cables, drives, and other noise sources reduces the interference they are exposed to. Secure connections prevent the intermittent-resistance problems that also cause erratic readings. Twisted-pair signal wires help reject induced noise. Applied at installation, these practices prevent most noise problems from ever occurring, so that the erratic-reading faults are rare rather than common. Understanding the prevention alongside the diagnosis means you can both fix noise when it occurs and, better, install loops so it does not. When you do diagnose a noise problem, it often traces back to a lapse in these practices — double-end grounding, poor routing, a loose connection — and the fix is to restore good practice. So the knowledge of noise prevention serves twice: to install loops well so noise is prevented, and to guide the diagnosis of noise when it occurs back to the practice that was not followed. Good installation is the best noise troubleshooting, because it prevents the problem, and understanding the practices is understanding both prevention and cure.
Scenario: the loose connection masquerading as noise
A scenario shows that not all erratic readings are electromagnetic noise. A loop’s reading was intermittently erratic, and the investigation initially focused on interference — shielding, grounding, cable routing. But these checked out, and the erratic behavior continued. Broadening the investigation of the erratic signature to include intermittent connections, a loose terminal was found in the loop: as it vibrated or shifted, its resistance varied intermittently, causing the current to fluctuate and the reading to jump. The erratic signature was caused not by electromagnetic noise but by an intermittent mechanical connection introducing variable resistance. Tightening the connection steadied the reading. This scenario broadens the interpretation of the erratic signature: while it often means electromagnetic noise, it can also mean an intermittent connection, and both should be considered. A loose or corroded connection that varies with vibration or temperature produces an erratic reading just as noise does, and checking connections is part of diagnosing an erratic signal alongside checking for interference. The scenario reminds that the erratic signature points to a class of causes — noise and intermittent connections both — and a thorough diagnosis considers both, since a loose connection can masquerade as noise and is found by checking the connections when the interference factors do not explain the erratic reading.
Noise diagnosis as detective work
Diagnosing noise problems is often the most detective-like of loop troubleshooting, because noise can be intermittent, environmental, and multi-causal, and appreciating this prepares you for it. Unlike a clean hard fault, noise may come and go with other plant activity, depend on environmental conditions, and arise from a combination of factors — a marginal shield plus a nearby drive plus a particular cable route. Diagnosing it can require observing when the noise occurs (correlating with plant events), checking multiple factors (shielding, grounding, routing, connections), and sometimes trying corrections to see what helps. This detective work — gathering clues, forming hypotheses, testing them — is more open-ended than diagnosing a hard fault with a clear signature. Approaching noise diagnosis with this understanding — that it may take investigation of multiple factors and observation of conditions — sets realistic expectations and guides a thorough approach. The erratic signature classifies the fault as noise or intermittency, but pinning down the specific cause among the possible factors is detective work, requiring patience and systematic checking of the noise-related factors. Understanding noise diagnosis as this kind of investigation — more open-ended than hard-fault diagnosis, requiring multi-factor detective work — prepares you to approach it methodically and patiently, which is what these sometimes-elusive problems require to resolve.
