Industrial Ethernet Failures in the Real World: EtherNet/IP and PROFINET Troubleshooting

Industrial Ethernet failures are not ordinary internet problems.

When a home network slows down, a webpage loads late. When an industrial network misses cyclic data, a PLC may lose a drive connection, freeze remote outputs, drop an I/O device or stop an entire production sequence.

EtherNet/IP and PROFINET can deliver fast, repeatable control data when the network is correctly designed. Problems begin when real-time traffic is forced through damaged connectors, unsuitable cable routes, uncontrolled multicast traffic or incorrect cyclic data mappings.

The most important troubleshooting decision is separating two very different fault families:

Physical and network infrastructure failure
versus
Application data-mapping failure

The uploaded material frames this as a distinction between Layer 1/2 infrastructure problems and cyclic I/O mapping problems inside the PLC configuration. That separation is essential because the tools and corrective actions are completely different.

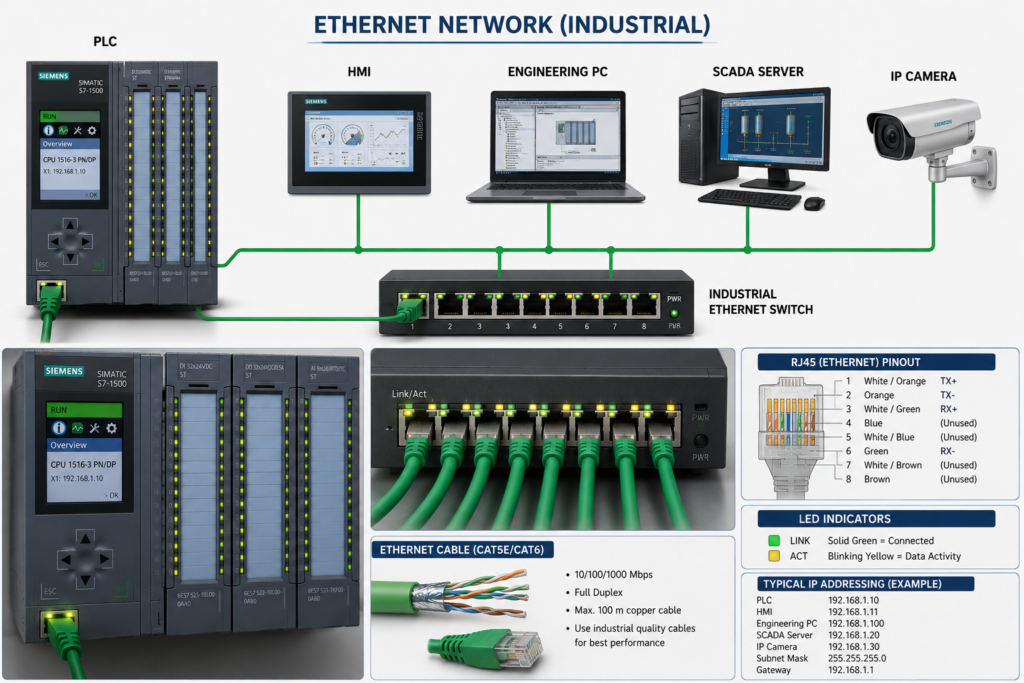

Why Industrial Ethernet Failures Are Difficult

The same device can fail in several ways.

A remote valve block may:

• Disconnect completely
• Remain connected but miss cyclic updates
• Reconnect repeatedly
• Report healthy communication with incorrect process values
• Freeze its last valid data
• Send the correct bytes while the PLC interprets them incorrectly

These symptoms may all appear on the HMI as a generic communication fault.

Engineers then start changing:

• Update times
• Watchdogs
• IP addresses
• Connection parameters
• PLC code
• Device configuration

Those changes may be irrelevant when the actual problem is a fractured cable conductor or damaged connector.

Before changing software, determine whether the network is losing packets or successfully delivering incorrectly interpreted data.

The First Diagnostic Division

Use this basic fingerprint.

Suspect physical or network infrastructure when:

• A device disconnects intermittently.
• The connection drops during vibration.
• Errors appear when a VFD starts.
• Switch error counters increase.
• Ping response becomes irregular.
• Several devices fail at the same time.
• Moving a cable changes the fault.
• Communication improves after lowering the update rate.
• Link status repeatedly drops and returns.

Suspect data mapping or configuration when:

• The connection remains continuously established.
• Cyclic updates remain stable.
• Switch counters remain clean.
• Device diagnostics show no network interruption.
• Process values are scrambled or physically impossible.
• Status bits appear in the wrong tags.
• Values change in response to the correct device but contain the wrong numbers.
• Problems begin after a firmware, EDS or GSDML change.

This simple classification prevents physical-layer faults from being treated as PLC programming problems.

Vibration-Induced Cable Failures

Industrial Ethernet cables are exposed to conditions rarely found in offices:

• Machine vibration
• Repeated cabinet-door movement
• Oil and chemical contamination
• High temperatures
• Cable-tray pressure
• Tight bends
• Poor strain relief
• Continuous flexing

A conductor does not need to break completely to create communication problems.

A partial fracture or weak termination may continue passing enough energy for the link LED to remain green. Under vibration, however, the connection briefly introduces attenuation, impedance changes or electrical discontinuity.

The result may be:

• Corrupted Ethernet frames
• Missed real-time updates
• Link flaps
• Watchdog expiration
• Intermittent I/O loss

The machine stops, but the cable returns to normal before maintenance arrives.

This creates the classic report:

“The network fault disappears whenever someone opens the cabinet.”

Opening the door may move the cable just enough to restore the damaged connection.

The Green Link LED Is Not Proof

A green link indicator proves only that the Ethernet transceivers established a physical link.

It does not prove:

• Zero packet loss
• Low jitter
• Good shielding
• Correct termination
• Healthy connector contacts
• Deterministic delivery
• Correct cyclic data mapping

A marginal cable can maintain the link while corrupting occasional frames.

Real troubleshooting requires switch and device diagnostics rather than visual confirmation alone.

Read the Switch Port Counters

A managed switch can provide valuable evidence.

Important counters include:

FCS or CRC errors

These indicate that frames arrived with invalid integrity checks.

Possible causes include:

• Cable damage
• Connector faults
• Electrical interference
• Poor shielding or bonding
• Defective network hardware

Link-up and link-down events

Repeated link transitions suggest:

• Loose connectors
• Broken conductors
• Loss of device power
• Damaged switch ports
• Vibration-related interruptions

Receive errors and discards

These may indicate malformed traffic, overloaded ports, buffer problems or physical-layer corruption.

Dropped packets

Drops may occur because of congestion, insufficient buffering or traffic bursts.

Speed and duplex changes

Industrial full-duplex links should not repeatedly renegotiate during operation.

Broadcast and multicast rates

An unexpectedly high level may point toward flooding, loops or uncontrolled multicast traffic.

Do not record only the current counter value. Record whether it continues increasing during the fault.

A port with ten old CRC errors may be healthy now. A port adding hundreds of errors every minute is not.

Controlled Cable Stress Testing

A controlled cable test can expose vibration-sensitive faults.

Where site procedures and machine safety permit:

1. Monitor the suspect switch port.
2. Record FCS errors and link events.
3. Observe the PLC hardware diagnostics.
4. Carefully manipulate one connector or cable section.
5. Watch for a direct change in errors or connection state.

The test should be performed only when controlled movement cannot create an equipment or personnel hazard.

Do not pull cables randomly from a running control system.

The purpose is to correlate one physical section with one measurable network response.

When touching one connector causes the error counter to increase, stop changing PLC code and repair the connection.

Inspect the Connector Properly

Common connector problems include:

• Outer jacket not secured by strain relief
• Individual conductors visible outside the plug
• Broken locking tab
• Damaged shielding connection
• Incorrect field-attachable connector assembly
• Contamination inside the connector
• Excessive bending at the plug
• Rigid cable used in a moving application
• Wrong conductor type for the termination method

The cable jacket should be mechanically secured.

The individual twisted pairs should not carry the pulling force.

Where vibration is significant, use connectors and cables intended for that environment. A consumer patch lead may work during commissioning and become unreliable after months of production vibration.

Cable Category Is Not the Whole Specification

Cat5e or Cat6 describes certain electrical performance characteristics. It does not automatically mean that the cable is suitable for every plant environment.

Industrial cable selection may also need to consider:

• Shielding
• Oil resistance
• Temperature range
• Continuous-flex rating
• Flame properties
• Chemical resistance
• UV exposure
• Mechanical protection
• Connector compatibility

Shielded cable is often appropriate near drives and motors, but the final selection should follow the network specification, equipment documentation and plant EMC design.

A poorly installed shielded cable can perform worse than a correctly installed cable of a simpler type.

VFD Noise and Cable Routing

VFD motor outputs generate fast voltage transitions and common-mode electrical currents.

Industrial Ethernet cables routed beside VFD output conductors may experience:

• Radiated interference
• Capacitive coupling
• Ground-reference disturbance
• Noise bursts during acceleration
• Communication errors at particular motor speeds

A strong failure fingerprint is:

VFD starts
↓
Switch errors increase
↓
Remote I/O connection drops
↓
VFD stops
↓
Network recovers

When this occurs, investigate:

• Separation between network and motor cables
• Cable-tray layout
• Shield continuity
• Drive and motor grounding
• Equipotential bonding
• Connector shield termination
• Crossings between power and data cables

Where network and power cables must cross, short right-angle crossings are generally preferable to long parallel runs.

Industrial Switches and Real-Time Traffic

An unmanaged switch forwards Ethernet frames without giving engineers much control or visibility.

That does not mean every unmanaged switch immediately causes failure. A small, correctly designed network can operate on one.

The problem is that unmanaged hardware provides limited ability to:

• Inspect port errors
• Control multicast
• Prioritize traffic
• Detect loops
• Mirror traffic for analysis
• Diagnose intermittent faults
• Apply network redundancy features

Managed industrial switches are therefore strongly preferred for important automation networks.

They provide both control and evidence.

EtherNet/IP Multicast Traffic

EtherNet/IP implicit I/O connections can use either unicast or multicast, depending on the devices and configuration.

With multicast traffic, one producer sends cyclic data to a multicast group.

Without effective multicast control, switches may flood that traffic to ports that do not need it.

This can create unnecessary load on:

• HMIs
• Drives
• PLC communication interfaces
• Remote I/O
• Engineering computers

IGMP snooping allows the switch to learn which ports requested each multicast group and forward the traffic more selectively.

However, IGMP snooping must be designed correctly. Depending on the topology, an IGMP querier may also be required to maintain group membership information.

Simply enabling one checkbox without understanding the network does not guarantee correct behaviour.

Broadcast Storms and Network Loops

A true broadcast storm is often caused by a physical or logical loop.

For example:

Switch A
↓
Switch B
↓
Switch C
↓
Back to Switch A

Ethernet frames circulate repeatedly, consuming more bandwidth with every pass.

Symptoms include:

• Extremely high switch activity
• Many devices becoming unreachable
• Unstable HMIs
• PLC communication faults across several areas
• High broadcast counters
• Network recovery after one cable is disconnected

Managed switches can use features such as spanning-tree protocols or vendor-specific loop protection.

Real-time automation networks should not depend on an accidental loop remaining harmless.

PROFINET and Traffic Priority

PROFINET Real-Time communication uses Ethernet prioritization to help cyclic control frames move through switches predictably.

Industrial switches used in PROFINET systems should correctly support the required priority mechanisms and network design.

Important factors may include:

• IEEE 802.1p prioritization
• LLDP topology information
• Device update times
• Network load
• Switch forwarding behaviour
• Media redundancy configuration
• Conformance with the intended PROFINET class

A switch that forwards ordinary office traffic acceptably may still be unsuitable for a heavily loaded real-time control network.

Packet Jitter and Missed Update Windows

Jitter is variation in packet arrival time.

A cyclic connection may be configured to exchange data at a regular interval. Packets do not need to arrive at the exact same microsecond, but they must remain inside the acceptable watchdog and update window.

Excessive variation can be caused by:

• Congestion
• Switch buffering
• Broadcast or multicast flooding
• Cable errors
• Device CPU overload
• Network loops
• Improper topology
• Bursty non-control traffic

For UDP-based cyclic I/O, a lost packet is not necessarily retransmitted like a TCP application message. The controller normally waits for the next cyclic update and monitors the connection watchdog.

Repeated missed updates eventually cause the I/O connection to fault.

This is why extending a watchdog can hide packet loss without repairing the network.

Ping Is a Clue, Not Proof

A continuous ping test can help identify:

• Total packet loss
• Intermittent connectivity
• Large latency spikes
• Failure correlated with plant events

For example:

ping 192.168.1.50 -t

may reveal that the device becomes unreachable whenever a motor starts.

However, a clean ping does not prove that real-time I/O is healthy.

Ping uses ICMP traffic and may be:

• Prioritized differently
• Processed by a different device task
• Slower than cyclic I/O
• Rate-limited
• Ignored by some devices

A device may answer ping normally while its real-time I/O connection is faulted.

Use ping as one diagnostic indicator alongside:

• Switch counters
• PLC connection diagnostics
• Device status
• Packet capture
• Network analyser results

Stable Communication but Garbage Data

When the network connection remains stable but the values are nonsense, investigate the cyclic data structure.

Industrial devices exchange process data as ordered bytes.

The PLC and device must agree on:

• Total byte length
• Input and output assembly
• Module layout
• Data-type size
• Byte order
• Word order
• Padding
• Status-bit position

A one-byte shift can corrupt every value after it.

For example:

Expected layout:

Bytes 0–3: Pressure REAL
Bytes 4–5: Status WORD
Bytes 6–7: Temperature INT

If an unexpected padding byte is inserted:

Actual layout:

Byte 0: Padding
Bytes 1–4: Pressure data
Bytes 5–6: Status data
Bytes 7–8: Temperature data

The PLC may read correct network bytes from incorrect offsets.

The physical network is healthy.

The application interpretation is not.

Exact Byte Counts Matter

Suppose a device produces 32 input bytes while the PLC configuration expects 30.

Depending on the platform and device, the connection may:

• Fail to establish
• Report a size mismatch
• Truncate data
• Leave later tags unmapped
• Shift manually copied data incorrectly

The PLC hardware configuration must match the active device profile exactly.

Do not assume that two firmware versions use the same cyclic data size.

A manufacturer may add:

• Diagnostic words
• New status bits
• Padding
• Optional process values
• Additional command bytes

After a firmware or module change, verify the entire structure.

EtherNet/IP Assembly Instances

Generic EtherNet/IP modules may require configuration of:

• Input assembly instance
• Output assembly instance
• Configuration assembly instance
• Input size
• Output size
• Data format
• Requested packet interval

These values must match the documentation for the exact device and firmware.

A wrong assembly instance can result in:

• Connection rejection
• Connection to the wrong data set
• Missing values
• Unexpected byte layouts

Use the correct Electronic Data Sheet when available, but still verify the resulting module configuration.

An old EDS file may not describe a newer firmware layout accurately.

PROFINET Module Configuration

PROFINET configuration is normally described through a GSDML file.

The selected modules and submodules determine:

• Input length
• Output length
• Data order
• Diagnostic behaviour
• Slot and subslot layout

If the PLC project contains a different module combination from the physical device, the controller may report a configuration fault or interpret the data incorrectly.

Verify:

• Device type
• Firmware
• GSDML version
• Selected modules
• Slot arrangement
• Input and output length
• Consistency settings

EDS belongs to EtherNet/IP device descriptions. GSDML is the corresponding configuration file commonly used for PROFINET devices.

Byte Order and Word Order

Multi-byte values require agreement on how bytes are arranged.

A 32-bit floating-point value contains four bytes.

Possible differences include:

• Big-endian byte order
• Little-endian byte order
• Swapped 16-bit words
• Device-specific mixed ordering

For example, four bytes representing one floating-point value can produce a completely different number when rearranged.

The symptom may be:

• Extremely large values
• Very small scientific-notation values
• Negative values where only positive values are possible
• Values changing wildly with small process movement

Do not add byte-swapping logic automatically.

First verify the device documentation and inspect the raw bytes.

A swap that fixes one device family may corrupt another.

Hidden Padding and Data Alignment

PLC structures may include padding to align larger data types efficiently.

For example, a compiler may align a 32-bit value on a four-byte boundary.

This can create a difference between:

• The packed network byte sequence
• The internal PLC structure layout

Avoid mapping an external raw byte array directly into an ordinary structure unless the platform guarantees matching packing and alignment.

A safer approach is often:

1. Receive data into a raw byte array.
2. Validate the connection and length.
3. Copy or decode each field deliberately.
4. Apply byte or word swapping where required.
5. Convert the values into engineering tags.
6. validate ranges and status.

This makes the mapping visible and testable.

Mapping Problems Can Mimic Noise

A byte-order error can make an analog value appear to jump randomly.

Engineers may then investigate:

• Shielding
• Electrical noise
• Filtering
• Sensor stability

The real issue is that the PLC is interpreting the same four bytes in the wrong order.

Use the failure fingerprint:

Connection stable
+
No switch errors
+
Raw data updates consistently
+
Decoded values nonsensical
=
Mapping or interpretation problem

This distinction is emphasized throughout the supplied chapter: stable communication with corrupted values points toward data alignment, while connection instability points toward the network path.

Inspect Raw Data Before Tagged Aliases

High-level PLC tags can hide the underlying structure.

When values look wrong:

1. Open the raw cyclic input array.
2. Record the bytes in hexadecimal.
3. Compare them with the device documentation.
4. Change one known physical input.
5. Observe which bytes change.
6. Confirm data size and offset.
7. Decode the value manually.

For example, apply a known pressure of 5 bar and compare the expected IEEE-754 representation with the received bytes.

This confirms whether the fault is:

• At the device
• In transmission
• In the PLC mapping
• In byte conversion
• In scaling

Separate Network Quality From Process Data Quality

A network connection can be healthy while the instrument data is invalid.

The PLC should therefore monitor both:

Network_Connection_Healthy
Process_Data_Valid

A device may remain connected while reporting:

• Sensor fault
• Overrange
• Internal diagnostic condition
• Invalid quality
• Stale measurement

Do not treat “device connected” as “process value trustworthy.”

Three-Tier Industrial Ethernet Workflow

A disciplined troubleshooting sequence can be divided into three phases.

Phase 1: Physical Infrastructure

Inspect:

• Connector condition
• Strain relief
• Cable damage
• Industrial cable suitability
• Shield bonding
• Cable routing
• Device power
• Switch-port link state
• Port error counters

Questions:

• Does vibration change the fault?
• Do FCS errors increase?
• Does the link flap?
• Does the problem follow one cable?
• Does the fault begin with motor operation?

Correct physical defects before changing PLC timing.

Phase 2: Active Network Behaviour

Review:

• Packet loss
• Port utilization
• Broadcast and multicast rates
• IGMP snooping
• PROFINET priority handling
• Network loops
• Device update times
• Connection watchdogs
• Managed-switch diagnostics

Use:

• Continuous ping as a preliminary clue
• Port mirroring
• Packet capture
• Vendor diagnostic software
• Industrial network analysers
• PLC hardware diagnostics

Determine whether packets are:

• Missing
• Delayed
• Flooded
• Rejected
• Delivered consistently

Phase 3: Application Mapping

When network delivery is stable, verify:

• Device profile
• Assembly instances
• Module and submodule selection
• Exact input and output byte lengths
• Data types
• Byte order
• Word order
• Structure packing
• Scaling
• Status-bit locations

Do not rewrite control logic until the raw cyclic data has been proven correct.

Common Troubleshooting Mistakes

Changing watchdogs first

A longer watchdog may reduce trips while packet loss continues.

Trusting the green LED

The link can remain established while frames are corrupted.

Assuming multicast is always the problem

EtherNet/IP systems may use unicast connections. Confirm the actual traffic.

Replacing managed switches with any expensive switch

Industrial suitability, diagnostics and correct configuration matter more than price alone.

Treating ping as final proof

Clean ICMP responses do not guarantee deterministic cyclic I/O.

Swapping bytes until values look believable

A believable number may still be wrong. Verify the documented format.

Ignoring firmware changes

Device revisions can change the cyclic structure and required configuration file.

Editing PLC logic around invalid data

Fix the connection or mapping rather than compensating for corrupted values in the control sequence.

Industrial Ethernet Field Checklist

Physical infrastructure

• Inspect cable jackets, connectors and strain relief.
• Check for crushing, sharp bends and repeated movement.
• Verify cable suitability for the environment.
• Confirm shielding and bonding follow the network design.
• Separate data cables from VFD and motor conductors.
• Review switch FCS and link-flap counters.

Network configuration

• Confirm switches are suitable for industrial real-time traffic.
• Review multicast behaviour on EtherNet/IP.
• Verify IGMP snooping and querier design where required.
• Confirm PROFINET prioritization and topology.
• Check for loops and excessive broadcast traffic.
• Monitor packet loss, utilization and update timing.

Cyclic data mapping

• Confirm the exact EDS or GSDML version.
• Verify assembly instances or module layout.
• Match input and output byte counts.
• Inspect raw byte arrays.
• Verify byte and word order.
• Check padding and structure alignment.
• Validate every decoded value against a known physical condition.

Final Thoughts

Industrial Ethernet failures should not be treated as one generic category.

A network that drops devices during vibration has a different problem from a network that remains perfectly connected while producing scrambled process values.

Start by separating:

Packet delivery failure
from
Data interpretation failure

For packet-delivery faults, inspect the physical cable, connectors, shielding, switch counters, multicast behaviour and network load.

For data-interpretation faults, inspect the raw cyclic bytes, device profile, assembly or module layout, byte order and structure alignment.

Do not extend watchdogs to hide damaged cabling.

Do not replace cables to fix a one-byte mapping error.

The fastest industrial network troubleshooting comes from identifying which layer broke its promise—and staying inside that layer until the evidence is clear.
