Not every transmitter is loop-powered. Some devices need more power than the loop can supply, or provide their own power, and these use three-wire or four-wire connections. Recognizing these types and how they differ from the two-wire loop-powered transmitter is important for wiring and troubleshooting, because the signal path and the power path are separate in these devices.
Three-wire transmitters

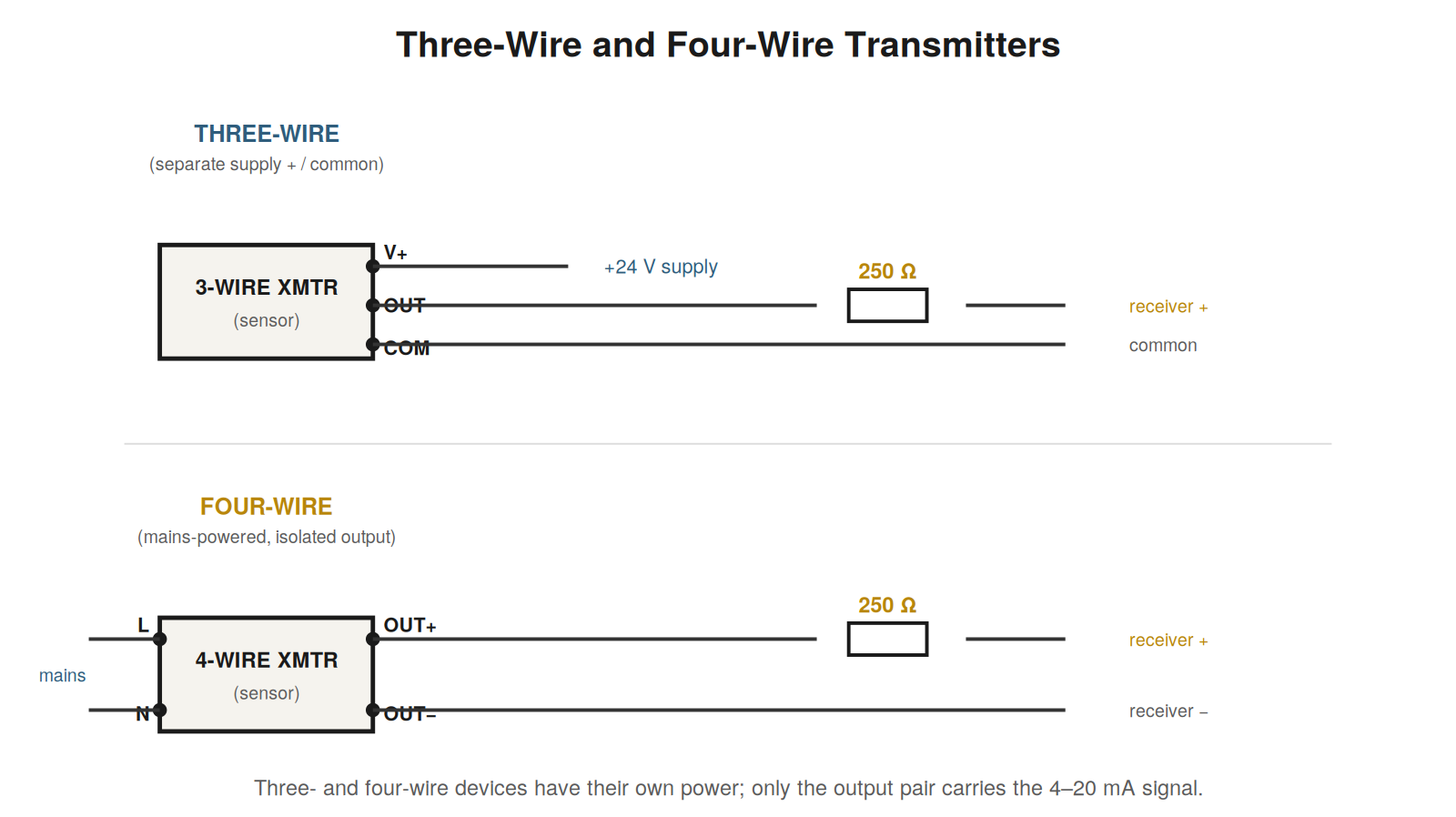

A three-wire transmitter has a separate power connection and a signal output that share a common return. Typically there is a supply positive terminal, a signal output terminal, and a common terminal that serves as the return for both the power and the signal. The device is powered from the supply and common, and it produces its 4–20 mA output on the output terminal referenced to the same common. This arrangement is used for transmitters that need more power than the 4 mA of a loop-powered device can provide, since the separate power connection can supply as much as the device needs, while the output still provides the standard 4–20 mA signal. Reading a three-wire connection means distinguishing the power path (supply to common) from the signal path (output to common), recognizing that the common is shared, and wiring accordingly — which differs from the two-wire loop where a single pair does everything.
Four-wire transmitters
A four-wire transmitter has completely separate power and signal connections — two wires for power and two for the signal output — with no shared common. Often the power is mains voltage rather than the loop’s DC, and the signal output is an isolated 4–20 mA that is entirely separate from the power. This full separation is used for devices that are mains-powered or need isolation between their power and signal. Reading a four-wire connection means treating the power and signal as independent: the device is powered from its power terminals (possibly mains), and it produces a 4–20 mA signal on its separate, isolated output terminals, which connect to the receiver just like any other loop signal but without any power-sharing. The signal side of a four-wire transmitter still behaves as a standard current loop — the output drives 4–20 mA to a receiver — but the device’s power comes entirely from its own separate connection, which is the key distinction from the loop-powered two-wire type.
Identifying the type when troubleshooting
When troubleshooting, identifying which type of transmitter you have is an important early step, because it determines where the power comes from and how the signal is connected. A dead two-wire loop could be a power problem in the single supply that feeds the loop; a dead four-wire transmitter’s signal could be a problem in the device’s separate power (mains) even though the signal wiring is fine. Reading the transmitter’s terminals and documentation to determine whether it is two-, three-, or four-wire tells you how to think about its power and signal, and prevents the confusion of, for instance, checking the loop supply on a four-wire device whose real problem is its mains power. Knowing the type orients your troubleshooting: for a two-wire device, power and signal share the loop; for three- and four-wire devices, the power is separate and must be checked separately from the signal path. This identification is a simple but essential first step that shapes the rest of the diagnosis.
When you need more than the loop can give
Three- and four-wire transmitters exist because some devices simply need more power than a loop-powered two-wire device can draw from the 4 mA minimum. A transmitter with a power-hungry sensor, a display, extra processing, or a need to drive a strong output may require more power than the loop can supply while still keeping the current as a faithful signal. For these, a separate power connection provides the needed power, freeing the output to be purely a signal. The trade-off is more wiring — three or four wires instead of two — and thus higher installation cost, which is why these types are used only when the extra power or the isolation they provide is actually needed, rather than as the default. Understanding this trade-off explains the landscape of transmitter types: two-wire as the economical default for the many measurements it suits, and three- or four-wire for the fewer cases needing more power or isolation, accepting the extra wiring for the capability gained. The type chosen reflects the device’s power needs weighed against wiring cost.
Scenario: checking the wrong power
A scenario shows why identifying the transmitter type matters in troubleshooting. A four-wire transmitter’s signal was dead — no current on its output — and a technician, assuming it was loop-powered, checked the loop supply and found it present, then was puzzled that the transmitter still produced no signal. The confusion arose from not recognizing the four-wire type: its signal output is powered by the device’s own separate power (often mains), not by the loop supply, so the loop supply being fine was irrelevant to why the output was dead. The real problem was the device’s own power — its mains supply had failed — so the transmitter was not operating and produced no output regardless of the loop supply. Once the type was correctly identified as four-wire and its own power checked, the failed mains supply was found and the signal restored. This scenario shows how misidentifying the transmitter type sends troubleshooting to the wrong place: checking the loop supply on a device whose signal is powered separately wastes effort, and correctly identifying the type — and thus where the power actually comes from — directs the diagnosis correctly.
Isolation and why it matters
Four-wire transmitters often provide isolation between their power and their signal output, and understanding why isolation matters explains part of their value. Isolation means the signal output is electrically separated from the power input, so there is no direct electrical connection between the mains (or other) power and the 4–20 mA signal circuit. This separation prevents power-side disturbances from coupling into the signal, and it avoids ground and reference conflicts between the power and signal circuits, which can be important in complex installations. Isolation also improves safety by keeping the potentially higher power voltage separated from the low-voltage signal circuit. For measurements where such separation matters — to prevent noise coupling, avoid ground conflicts, or maintain safety separation — an isolated four-wire transmitter provides it, which a non-isolated device would not. Understanding isolation as a deliberate feature — electrical separation of power and signal for noise immunity, reference independence, and safety — explains why four-wire isolated transmitters are chosen for certain applications despite their extra wiring, and it is part of reading what a four-wire device provides beyond simply having separate power.
Choosing the right transmitter type
Understanding the transmitter types equips you to choose the right one for an application, which is a practical design skill alongside the troubleshooting skill. The default is two-wire loop-powered, for its wiring economy and simplicity, suitable for the many measurements that fit within its power constraint. When a device needs more power than the loop can supply — for a display, extra processing, or a demanding sensor — a three-wire or four-wire type with separate power is chosen. When isolation between power and signal is needed — for noise immunity, reference independence, or safety separation — an isolated four-wire type provides it. The choice weighs the wiring cost of more wires against the power or isolation gained, defaulting to two-wire unless the application specifically needs what the other types offer. Understanding this choice — two-wire by default, three- or four-wire when more power or isolation is genuinely needed — lets you select transmitters sensibly and understand why existing installations use the types they do. It is the design counterpart to the troubleshooting knowledge: knowing not just how to fix each type but when each type is appropriate, which completes a rounded understanding of transmitter types beyond just recognizing and diagnosing them.
Reading the terminals to identify the type
A practical skill is identifying a transmitter’s type from its terminals, since this tells you how to think about its power and signal. A two-wire device has just two terminals, marked plus and minus, carrying both power and signal. A three-wire device has three terminals — typically a supply, an output, and a common — with the common shared between power and signal. A four-wire device has four terminals — two for power (possibly mains) and two for the isolated signal output. Reading the terminal count and markings tells you the type: two terminals means loop-powered two-wire; three means three-wire with a shared common; four means four-wire with separate power and signal. This identification, from the terminals and the device’s documentation, orients your understanding of where the power comes from and how the signal connects, which shapes wiring and troubleshooting. When approaching an unfamiliar transmitter, reading its terminals to determine the type is an important early step, telling you whether power and signal share the wires (two-wire) or are separate (three- or four-wire), and thus how to wire it and where to look when troubleshooting its power or signal. The terminals reveal the type, and the type frames everything about the device’s power and signal handling.
The full landscape of transmitter types
Having covered two-, three-, and four-wire transmitters, it helps to hold the full landscape in mind, because recognizing where a given device fits orients all your work with it. Two-wire loop-powered devices are the economical default, powered by the loop, suitable for most measurements, constrained by the voltage budget. Three-wire devices have separate power sharing a common with the signal, used when more power is needed than the loop provides. Four-wire devices have fully separate, often isolated, power and signal, used when still more power or isolation is required. This landscape — two-wire as default, three- and four-wire for greater power or isolation needs — covers the transmitter types you will meet, and placing any device within it tells you how its power and signal work. When you encounter a transmitter, identifying its type locates it in this landscape and tells you immediately how to think about its power (from the loop, or separate) and signal (shared with power, or separate), which frames wiring and troubleshooting. Holding the full landscape of types — and knowing the trade-offs that determine which is used — gives you a complete framework for understanding any transmitter’s power and signal arrangement, which is the foundation for wiring it correctly and troubleshooting it effectively, whatever type it turns out to be.
