Before you can troubleshoot a 24 volt DC control circuit, you need a clear picture of what it is and what it does. At its simplest, the control circuit is the low-voltage part of a machine that makes the decisions and sends the commands: it takes in signals from buttons, switches, and sensors, applies some logic, and sends out commands to devices that make the machine act. It runs on 24 volts DC — a low, relatively safe voltage — separate from the higher-voltage power circuits that actually move the machine. Understanding this basic division — a low-voltage control side that thinks and signals, alongside a high-voltage power side that does the work — is the foundation for everything that follows.
Control side and power side

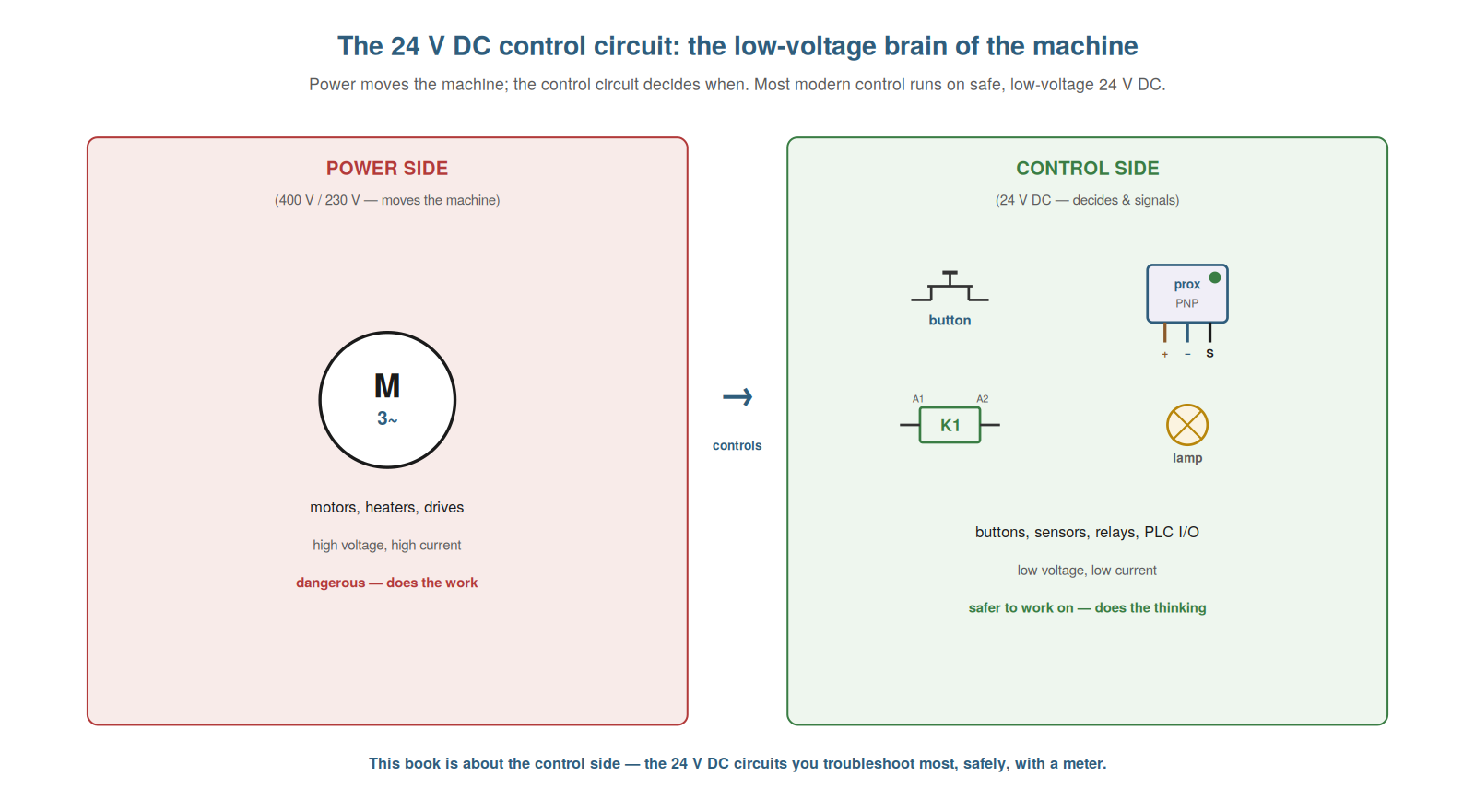

The single most useful distinction for a maintenance technician is between the control side and the power side of a machine, and understanding it clarifies where 24 volt DC troubleshooting fits. The power side carries the high voltage and current that does the physical work: it feeds the motors, heaters, and drives, running at mains voltages like 230 or 400 volts, dangerous and capable of moving heavy machinery. The control side carries the low voltage that makes the decisions: it runs on 24 volts DC, handling the buttons, sensors, relays, and PLC signals that decide what the machine should do and command the power side to do it. So the machine is divided into a power side that acts and a control side that thinks, and the control side commands the power side — a button on the control side, through a relay, energizes a contactor coil that switches the motor on the power side. Understanding this division — low-voltage control commanding high-voltage power — places 24 volt DC troubleshooting on the control side, the thinking part of the machine. It reinforces that the control side (24 V DC, signals and logic) commands the power side (mains voltage, motors and heaters), so that troubleshooting the control circuit means working on the low-voltage decision-making part. Understanding the division between the control side and the power side — the low-voltage 24 volt DC control that thinks and signals, commanding the high-voltage power that does the work — is the foundational distinction for the maintenance technician, because it places 24 volt DC troubleshooting squarely on the control side, the relatively safe, low-voltage part of the machine where the buttons, sensors, relays, and logic live, which is both where a great many machine faults originate and where you can work with the meter on a live circuit, making the control side the natural home of the troubleshooting this book teaches.
Why 24 volts DC
It is worth understanding why control circuits use 24 volts DC in particular, because the reasons explain the character of the circuit you will work on. Twenty-four volts DC is chosen as a balance: it is low enough to be relatively safe (unlikely to give a dangerous shock in normal dry conditions, so it can be worked on live), yet high enough to drive real devices reliably over the distances of a machine’s wiring. Being direct current (DC) rather than alternating, it suits the electronics, sensors, and PLC inputs that dominate modern control, which are designed for a steady DC supply. And 24 volts has become the industry standard, so devices, supplies, and components are all built for it, making it the universal choice. So 24 volts DC is used because it is safe, capable, suited to modern electronics, and standard. Understanding these reasons explains why the control circuit is a safe, low-voltage, DC world of standard components — which is exactly why it is approachable to troubleshoot. Understanding why 24 volts DC is used — safe enough to work live, capable enough to drive devices, suited to modern electronics, and the universal standard — explains the character of the control circuit, so that you appreciate why it is a low-voltage, direct-current world of standardized components that you can measure on while it runs, which is precisely what makes the 24 volt DC control circuit the friendliest and most approachable part of the machine to troubleshoot, and why the low, safe, standard voltage shapes both the circuit and the way you work on it.
What the control circuit contains
To troubleshoot the control circuit, it helps to know what it typically contains — the cast of components you will meet — and understanding this overview prepares you for the chapters that examine each. A 24 volt DC control circuit typically contains: a power supply that provides the 24 volts; input devices that send signals in (pushbuttons, selector switches, limit switches, proximity and photo sensors); logic that decides (relays and their contacts, or a PLC processing inputs to outputs); output devices that act (relay and contactor coils, solenoid valves, indicator lamps); and the wiring that connects them all (wires, terminals, fuses). These components, wired between the positive and zero-volt rails, form the circuit. Understanding this cast — supply, inputs, logic, outputs, wiring — gives you the map of what you are troubleshooting and prepares you for the chapters that examine each in turn. So the control circuit is a supply feeding a network of inputs, logic, and outputs, connected by wiring, all running on 24 volts DC. Understanding what the control circuit contains — the power supply, the input devices, the logic, the output devices, and the wiring that connects them — gives you the map of what you troubleshoot, so that you know the cast of components you will meet and how they fit together into the circuit, which prepares you for the following chapters that examine each in turn and gives you the overview needed to reason about a circuit made of these parts, wired between the positive and zero-volt rails and running on the safe, standard 24 volts DC that this part of the machine uses.
How the control side commands the power side
A detail worth understanding is exactly how the low-voltage control side commands the high-voltage power side, because seeing the link clarifies the whole division. The bridge is the contactor: a control-side circuit energizes the contactor’s 24-volt coil, and the contactor’s heavy main contacts — on the power side — close to switch the motor’s mains supply. So a small 24-volt signal, through the coil, commands a large power switch, keeping the operator and the logic safely on the low-voltage side while the dangerous switching happens in the contactor. This is the pattern throughout: the control side provides the decision and a small coil current, and a relay or contactor translates that into switching a larger circuit. Understanding this link — the coil on the control side operating contacts that switch the power side — clarifies how the two sides connect and why the division works. Understanding how the control side commands the power side — through a relay or contactor whose 24-volt coil is energized by the control circuit and whose contacts switch the power circuit — clarifies the whole division, so that you see the concrete bridge between the low-voltage decision-making and the high-voltage work: a small control signal energizes a coil, and the coil’s contacts switch the motor, which keeps the logic and the operator on the safe side while the dangerous switching happens in the contactor, the pattern that lets the 24-volt control side safely command the mains-voltage power side of the machine.
Scenario: the technician who feared the control panel
A scenario shows the value of understanding what the control circuit is. A capable mechanical fitter, confident with the machine’s mechanics, froze whenever the fault was ‘electrical’ — the control panel felt like a mysterious, dangerous unknown. But once he understood the basic division — that the 24-volt control side is a low-voltage, relatively safe part that simply takes in signals and sends out commands, separate from the dangerous power side — the panel became approachable. He realized that most control faults were about a signal not getting through a low-voltage circuit he could measure safely, not the lethal power side he feared. Approaching a stalled machine this way, he found a button’s contact not making, and fixed it — a simple control fault, well within his reach. The understanding turned fear of the panel into capability. This scenario shows how understanding the control circuit’s nature turns panel-fear into competence. Understanding that the 24-volt control side is a safe, low-voltage world of signals and commands let the fitter approach a control fault with confidence rather than fear. It reinforces that grasping the control-versus-power division makes control faults approachable rather than intimidating. The scenario reinforces the chapter’s message: understanding the 24-volt control side as a relatively safe, low-voltage part that handles signals and commands, distinct from the dangerous power side, turns the intimidating control panel into an approachable, diagnosable circuit, which is what the fitter discovered when his understanding let him find and fix a simple control fault using measurements he could take safely.
Where the PLC fits in
A point worth understanding is where the PLC fits into the control circuit, because modern control often centers on a PLC and knowing its place clarifies the circuit. In many machines, a PLC (programmable logic controller) is the brain of the control side: instead of the logic being built entirely from relays wired together, the PLC reads the input signals (buttons, sensors) at its input terminals, runs a program that decides what to do, and drives its output terminals to operate the output devices (relays, valves, lamps). So the PLC sits in the middle of the control circuit, between the inputs and the outputs, doing in software what relay logic did in wiring. For troubleshooting, this means the signals still come in on 24-volt inputs and go out on 24-volt outputs, which you measure just as before — but the logic connecting them is in the PLC program rather than in wiring. Understanding where the PLC fits — reading inputs, running logic, driving outputs — clarifies the modern control circuit and where you measure. Understanding where the PLC fits in — as the brain reading 24-volt input signals, running the logic in software, and driving 24-volt outputs — clarifies the modern control circuit, so that you understand the PLC sits between the inputs and outputs doing in a program what relay logic did in wiring, which means you still measure the 24-volt signals coming into its inputs and going out of its outputs just as you would any control signal, while recognizing that the logic linking them lives in the PLC program rather than in wiring, an important orientation for troubleshooting the many machines whose control centers on a PLC.
Why the basics pay off
It is worth closing this chapter by appreciating why understanding the control circuit’s basics pays off, because it justifies learning the fundamentals before diving into faults. A technician who understands what a 24-volt DC control circuit is — a low-voltage side that takes in signals and sends out commands, commanding the power side, made of a supply, inputs, logic, and outputs — approaches every fault with a mental model that guides the diagnosis. When a device fails, they understand what part of the circuit is involved; when they read a schematic, they understand the roles; when they measure, they know what they are measuring. Without this understanding, troubleshooting is blind part-swapping; with it, every step is reasoned. So the basics pay off by turning blind guessing into reasoned diagnosis, which is why they are worth learning first. Understanding why the basics pay off — that grasping what the control circuit is turns every fault into a reasoned diagnosis rather than blind guessing — justifies learning the fundamentals first, so that you appreciate the basic understanding not as abstract theory but as the foundation that makes every subsequent diagnosis reasoned and effective, which is why this book builds understanding before diagnosis and why the effort to grasp what a 24-volt DC control circuit is repays itself in every fault you later resolve with the mental model it provides.
