A circuit breaker can look perfectly normal while quietly cooking itself from the inside. The same goes for loose terminals, overloaded cables, damaged bearings and overheating contactors. You may not smell anything yet. You probably will eventually—and by then the repair may be rather more expensive.
That is where a thermal imaging camera becomes genuinely useful.

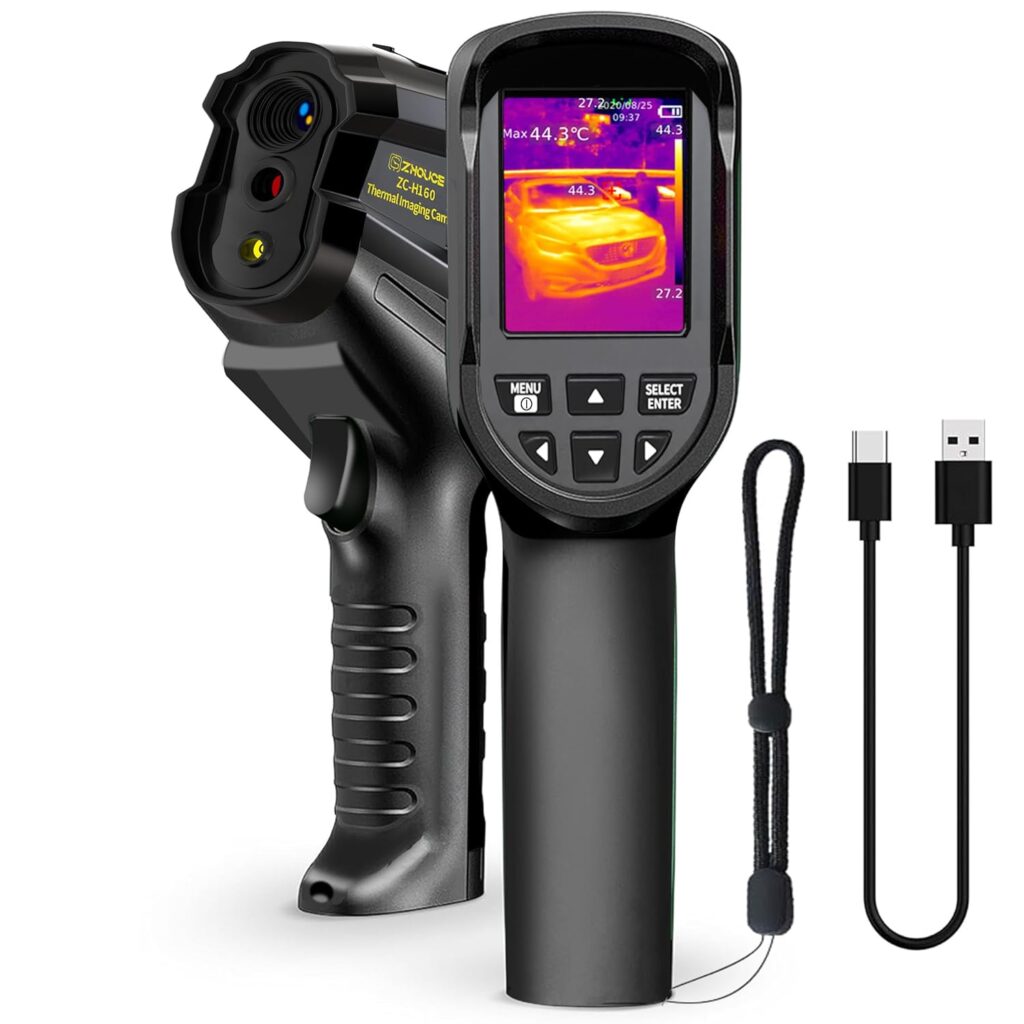

The ZHOUCE ZC-H160 Handheld Thermal Imaging Camera lets you see temperature differences across electrical equipment, machinery, walls, heating systems and other surfaces. It is a very good option for electricians, maintenance technicians and homeowners who want thermal imaging without immediately jumping to the price of a high-end professional camera.
[Handheld Thermal Imaging Camera]
Clear 160 × 120 Thermal Imaging
The ZC-H160 uses a 160 × 120 infrared resolution, giving it 19,200 thermal measurement points. It also offers a 25 Hz refresh rate, which should make movement appear smoother than on inexpensive thermal cameras limited to very low frame rates.
Its thermal sensitivity is listed at 40 mK or lower. In practical terms, that helps the camera display small temperature differences that may reveal developing faults before they become obvious.
For inspecting breaker panels, cable connections and machinery, that level of detail can be surprisingly useful.
Wide Temperature Range
The camera measures temperatures from -4°F to 1022°F, or approximately -20°C to 550°C. Its listed accuracy is ±3.6°F, while the emissivity setting can be adjusted between 0.01 and 1.00 for different materials.
It automatically identifies the hottest, coldest and centre temperature points. You can also configure high- and low-temperature alarms, which may help when scanning several breakers or components quickly.
Typical uses include:
- Finding overheating circuit breakers
- Checking loose electrical connections
- Inspecting motors and bearings
- Locating underfloor heating pipes
- Finding insulation problems
- Investigating moisture or water leaks
- Checking heating and cooling equipment
Multiple Viewing Modes
The ZC-H160 includes infrared, visible-light and image-fusion modes. The fusion setting combines the normal camera image with thermal information, making it easier to understand exactly which terminal, breaker or component is running hot.
Five colour palettes are available, including white hot, black hot, iron red, rainbow and red hot. Some people prefer iron red for electrical inspections, while rainbow can make smaller temperature variations stand out more clearly.
Storage and PC Analysis
The camera has 4 GB of built-in storage and is advertised as holding more than 5,000 thermal images. Files can be transferred through USB-C, and compatible PC software can be used for further image analysis and reporting.
That is especially helpful for technicians who need to document an overheating connection before and after a repair. A thermal image often explains the problem far better than several paragraphs in a service report.
Built for Field Use
According to the product listing, the ZC-H160 has an IP54 rating and has passed a 6.6-foot drop test. It also includes a removable 2,000 mAh rechargeable battery with a claimed operating time of up to 12 hours.
Real battery life will naturally depend on screen use and settings, but a replaceable battery is still a welcome feature.
Final Verdict
The ZHOUCE ZC-H160 appears to be a very good thermal camera for electrical inspections, maintenance work and household troubleshooting.
The 160 × 120 infrared resolution, 25 Hz refresh rate, image fusion, adjustable emissivity and PC analysis support give it a useful set of features without making the device unnecessarily complicated.
It will not replace professional testing procedures, and a thermal image alone cannot prove that equipment is electrically safe. Still, for spotting unusual heat patterns quickly, this camera could save a great deal of guessing.
